biaowai

@李东岳好的，谢谢老师！

biaowai

@李东岳老师，如果原始数据坐标和我的网格体心坐标不重叠，就要用到插值方法，一般采什么插值方法合适呢

biaowai

@李东岳李老师，就是用tecplot能输出为您指的数据形式，每一列对应一个变量，比如：

TITLE     = ""
VARIABLES = "x"
"y"
"p"
"u/Ub"
"v/Ub"
"w/Ub"
"nu_t/nu"
"<u'u'>/U<sub>b</sub><sup>2</sup>"
"<v'v'>/U<sub>b</sub><sup>2</sup>"
"<w'w'>/U<sub>b</sub><sup>2</sup>"
"uv/Ub^2"
"uw/Ub^2"
"vw/Ub^2"
"k/Ub^2"
ZONE T="onlyzone"
 STRANDID=0, SOLUTIONTIME=0
 I=196, J=128, K=1, ZONETYPE=Ordered
 DATAPACKING=POINT
 DT=(SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE )
 1.607157849E-02 1.001670957E+00 -1.160032116E-02 -4.419332545E-04 1.108767829E-04 1.172445409E-04 4.169606604E-03 3.070679726E-03 5.363423497E-06 2.476341324E-03 -4.059855200E-05 1.324464120E-05 -2.093530611E-07 2.776192268E-03
 4.821586981E-02 1.001688957E+00 1.396110019E-04 4.357797094E-03 8.979442646E-05 9.442696319E-05 4.473063163E-03 3.449148964E-03 5.933116881E-06 2.876745071E-03 -4.381870167E-05 1.613048153E-05 -2.160398651E-07 3.165913746E-03
 8.036702126E-02 1.001670957E+00 1.550839003E-02 9.025274776E-03 1.329612860E-05 8.381024963E-05 4.288332537E-03 3.727899631E-03 5.552815765E-06 3.075941466E-03 -3.998054308E-05 2.274494545E-05 -2.837280135E-07 3.404696938E-03
 1.125361994E-01 1.001445055E+00 2.612541243E-02 1.919417270E-02 -2.363917738E-04 1.087907294E-04 3.781126114E-03 3.806996159E-03 6.014777227E-06 2.951187082E-03 -7.744952745E-05 2.379864600E-05 -5.770835969E-07 3.382098861E-03
 1.447274983E-01 1.000419021E+00 3.702546656E-02 1.935387589E-02 -9.386826423E-04 1.189410614E-04 3.441388486E-03 3.408961929E-03 1.454687845E-05 2.611031057E-03 -1.917025365E-04 2.557383959E-05 -1.437096330E-06 3.017270006E-03
 1.769350022E-01 9.981601834E-01 4.660356045E-02 1.412238460E-02 -1.236868207E-03 1.366295910E-04 3.388901474E-03 2.840716857E-03 2.945053711E-05 2.342321211E-03 -2.724293445E-04 2.348102316E-05 -2.140308652E-06 2.606244292E-03
 2.091557980E-01 9.944663048E-01 5.734289065E-02 4.700349644E-03 -6.553693092E-04 1.441779459E-04 3.570280271E-03 2.361760009E-03 5.394188702E-05 2.147532534E-03 -3.465094196E-04 2.182194294E-05 -3.161800123E-06 2.281617373E-03
 2.413900048E-01 9.890016913E-01 6.659116596E-02 -4.727009684E-03 9.238781640E-04 1.252938819E-04 3.973037004E-03 2.007554518E-03 9.121072071E-05 2.040160587E-03 -4.207944730E-04 2.163483987E-05 -4.550076937E-06 2.069463022E-03
 2.736352086E-01 9.814335108E-01 7.550033182E-02 -1.226636581E-02 3.284901148E-03 9.592642891E-05 4.854913801E-03 1.890096581E-03 1.540009980E-04 1.985419774E-03 -5.343046505E-04 1.919102579E-05 -5.457195584E-06 2.014758531E-03
 3.058870137E-01 9.714285731E-01 8.219367266E-02 -1.585314423E-02 5.553464405E-03 1.225007691E-05 7.452565245E-03 1.883902820E-03 2.544213203E-04 1.922742347E-03 -6.884611794E-04 8.922108464E-06 -3.239756779E-06 2.030533273E-03
 3.381367028E-01 9.587087035E-01 8.831046522E-02 -1.742931083E-02 7.657137234E-03 -5.126111864E-05 1.384659857E-02 1.852983725E-03 3.839910205E-04 1.818480319E-03 -8.407403948E-04 -1.677947012E-06 8.278285577E-07 2.027727431E-03
 3.703751862E-01 9.432629943E-01 9.336583316E-02 -1.686210930E-02 8.794154041E-03 3.129130710E-05 2.444427274E-02 1.714259852E-03 4.927591654E-04 1.661306480E-03 -9.171591373E-04 3.393027328E-06 -1.732327632E-06 1.934162690E-03
 4.025976062E-01 9.253342748E-01 9.835574031E-02 -1.553214993E-02 9.222077206E-03 7.906599058E-05 3.771342337E-02 1.464983448E-03 5.403565592E-04 1.458810992E-03 -8.884384879E-04 5.756015071E-06 -3.364400527E-06 1.732075587E-03
 4.348042905E-01 9.052193761E-01 1.024615988E-01 -1.335643232E-02 8.764483966E-03 4.293467646E-05 5.186402425E-02 1.188463531E-03 5.316339084E-04 1.246515894E-03 -7.940374198E-04 4.800015631E-06 -3.192184977E-06 1.483306638E-03
 4.669972956E-01 8.832147121E-01 1.061192974E-01 -1.114674564E-02 7.911175489E-03 1.114533234E-06 6.543247402E-02 9.446168551E-04 4.914068268E-04 1.062652562E-03 -6.807612954E-04 6.419184047E-06 -4.659785645E-06 1.249338151E-03
 4.991801083E-01 8.596161008E-01 1.087564006E-01 -9.040180594E-03 6.819012575E-03 1.906530815E-05 7.746666670E-02 7.578500663E-04 4.429326509E-04 9.066381608E-04 -5.789970746E-04 1.981409468E-06 -1.536214654E-06 1.053710468E-03
 5.315052867E-01 8.345888257E-01 1.110552996E-01 -7.447810378E-03 5.889367778E-03 4.942064697E-05 8.752124757E-02 6.230192957E-04 3.983406350E-04 7.891814457E-04 -4.978944780E-04 7.744821460E-07 -6.069661822E-07 9.052706882E-04
 5.641251206E-01 8.082603216E-01 1.126338989E-01 -5.844191182E-03 4.790665116E-03 1.439555945E-05 9.612683207E-02 5.203748588E-04 3.564094659E-04 7.008929970E-04 -4.304422473E-04 -1.420996341E-06 1.140804329E-06 7.888386608E-04
 5.970454812E-01 7.808707952E-01 1.139284000E-01 -4.751059692E-03 3.993643448E-03 -2.899725769E-05 1.011205018E-01 4.460995551E-04 3.202182415E-04 6.276970380E-04 -3.777765087E-04 -2.163184035E-06 1.783167363E-06 6.970074028E-04
 6.302704811E-01 7.526702881E-01 1.148426011E-01 -3.732610028E-03 3.186505986E-03 -1.079070425E-04 1.025080010E-01 3.779401304E-04 2.789359423E-04 5.530502531E-04 -3.245451371E-04 -3.089254506E-06 2.575873850E-06 6.049631629E-04
 6.638022065E-01 7.239235044E-01 1.155169010E-01 -3.113800427E-03 2.672569593E-03 -1.299815485E-04 1.001565978E-01 3.263925319E-04 2.428262669E-04 4.902411019E-04 -2.814127365E-04 -4.204823199E-06 3.541459819E-06 5.297299358E-04
 6.976425052E-01 6.949139237E-01 1.160271019E-01 -2.589607844E-03 2.211316256E-03 -1.442474604E-04 9.582434595E-02 2.900119871E-04 2.134600800E-04 4.396356235E-04 -2.487174352E-04 -3.560399819E-06 3.004487780E-06 4.715538234E-04
 7.317981720E-01 6.659088731E-01 1.163076013E-01 -2.212648746E-03 1.864501392E-03 -1.998465741E-04 8.804365993E-02 2.686502994E-04 1.920674695E-04 3.960952745E-04 -2.270761906E-04 -1.788054533E-06 1.529237807E-06 4.284065217E-04

biaowai

@李东岳数据应该是按块分布的，这五列应该都是变量x，数据可以在tecplot里重新输出为按列分布的，
数据是NASA提供的3D LES结果，因为沿展向平均，就少了z方向，
我想是不是可以构建List，在OpenFOAM中读取这些数据，然后怎么把数据插值到OpenFOAM网格上，还不太清楚，不知道还有其他方法没

biaowai

老师，数据是tecplot格式，下载链接如下：
https://turbmodels.larc.nasa.gov/Other_LES_Data/2dhill_periodic.html

“Average pressures, velocities & turbulence quantities, gzipped file hill_LES_avgresults.dat.gz (1.7 MB)”

完整的5mb，太大上传不了，部分如下，坐标和对应流场数据还是很好区分的：

# LES data for 2D hill, long-time-average results, Tecplot data file format
# Data from Temmerman, Leschziner, et al.
# Subset of this data also available from ERCOFTAC Classic Database, Case 81
# http://cfd.mace.manchester.ac.uk/
variables="x"
"y"
"p"
"u/Ub"
"v/Ub"
"w/Ub"
"nu_t/nu"
"uu/Ub^2"
"vv/Ub^2"
"ww/Ub^2"
"uv/Ub^2"
"uw/Ub^2"
"vw/Ub^2"
"k/Ub^2"
ZONE T="onlyzone"
 STRANDID=0, SOLUTIONTIME=0
 I=196, J=128, K=1, ZONETYPE=Ordered
 DATAPACKING=BLOCK
 DT=(SINGLE SINGLE SINGLE SINGLE SINGLE )
  1.6071578E-02  4.8215870E-02  8.0367021E-02  0.1125362      0.1447275
  0.1769350      0.2091558      0.2413900      0.2736352      0.3058870
  0.3381367      0.3703752      0.4025976      0.4348043      0.4669973
  0.4991801      0.5315053      0.5641251      0.5970455      0.6302705
  0.6638022      0.6976425      0.7317982      0.7662754      0.8010758
  0.8362055      0.8716663      0.9074619      0.9435977      0.9800737
   1.016894       1.054060       1.091577       1.129447       1.167671
   1.206250       1.245187       1.284486       1.324150       1.364184
   1.404588       1.445366       1.486524       1.528066       1.569996
   1.612317       1.655035       1.698151       1.741669       1.785596
   1.829934       1.874691       1.919887       1.965541       2.011649
   2.058197       2.105185       2.152615       2.200492       2.248821
   2.297605       2.346848       2.396553       2.446728       2.497376
   2.548501       2.600106       2.652197       2.704781       2.757859
   2.811436       2.865520       2.920113       2.975218       3.030843
   3.086993       3.143672       3.200882       3.258632       3.316927
   3.375771       3.435169       3.495126       3.555650       3.616743
   3.678410       3.740658       3.803494       3.866921       3.930944
   3.995572       4.060810       4.126659       4.193129       4.260225
   4.327954       4.396322       4.465334       4.534668       4.603679
   4.672047       4.739775       4.806872       4.873343       4.939193
   5.004428       5.069057       5.133080       5.196507       5.259342
   5.321590       5.383258       5.444351       5.504874       5.564831
   5.624229       5.683074       5.741368       5.799119       5.856329
   5.913008       5.969158       6.024783       6.079890       6.134482
   6.188564       6.242141       6.295220       6.347804       6.399894
   6.451500       6.502625       6.553273       6.603448       6.653155
   6.702398       6.751180       6.799509       6.847385       6.894816
   6.941806       6.988353       7.034460       7.080114       7.125309
   7.170066       7.214405       7.258332       7.301851       7.344967
   7.387684       7.430006       7.471937       7.513479       7.554636
   7.595414       7.635818       7.675851       7.715517       7.754817
   7.793755       7.832335       7.870557       7.908425       7.945942
   7.983109       8.019931       8.056406       8.092541       8.128337
   8.163797       8.198927       8.233727       8.268205       8.302362
   8.336205       8.369735       8.402958       8.435880       8.468500
   8.500823       8.533006       8.565199       8.597406       8.629628
   8.661867       8.694117       8.726368       8.758614       8.790848
   8.823069       8.855276       8.887467       8.919637       8.951787
   8.983931      1.6072614E-02  4.8221398E-02  8.0390953E-02  0.1126138
  0.1449025      0.1772396      0.2096169      0.2420342      0.2744843
  0.3069537      0.3394175      0.3718477      0.4042305      0.4365664
  0.4688613      0.5011253      0.5335129      0.5661775      0.5991291
  0.6323731      0.6659118      0.6997479      0.7338908      0.7683513
  0.8031352      0.8382494      0.8736964      0.9094799      0.9456052
  0.9820726       1.018886       1.056047       1.093558       1.131418
   1.169626       1.208181       1.247085       1.286341       1.325952
   1.365921       1.406246       1.446933       1.487990       1.529422
   1.571233       1.613429       1.656014       1.698989       1.742358
   1.786130       1.830307       1.874906       1.919975       1.965564
   2.011655       2.058200       2.105188       2.152619       2.200496
   2.248825       2.297608       2.346851       2.396556       2.446731
   2.497379       2.548504       2.600109       2.652199       2.704783
   2.757861       2.811438       2.865522       2.920114       2.975219
   3.030844       3.086994       3.143672       3.200883       3.258633
   3.316927       3.375771       3.435169       3.495126       3.555649
   3.616742       3.678409       3.740657       3.803493       3.866919
   3.930942       3.995570       4.060807       4.126657       4.193126
   4.260222       4.327951       4.396320       4.465332       4.534665
   4.603675       4.672043       4.739772       4.806869       4.873339
   4.939189       5.004425       5.069052       5.133076       5.196502
   5.259337       5.321585       5.383253       5.444345       5.504869
   5.564826       5.624223       5.683068       5.741362       5.799112
   5.856322       5.913001       5.969151       6.024776       6.079882
   6.134475       6.188557       6.242134       6.295212       6.347795
   6.399886       6.451491       6.502616       6.553264       6.603438
   6.653145       6.702388       6.751170       6.799499       6.847376
   6.894807       6.941796       6.988341       7.034430       7.080020
   7.125089       7.169687       7.213865       7.257637       7.301008
   7.343983       7.386566       7.428763       7.470576       7.512008
   7.553064       7.593751       7.634077       7.674045       7.713657
   7.752915       7.791821       7.830376       7.868582       7.906441
   7.943952       7.981114       8.017929       8.054397       8.090521
   8.126305       8.161752       8.196866       8.231650       8.266111
   8.300256       8.334094       8.367631       8.400873       8.433826
   8.466492       8.498878       8.531141       8.563437       8.595773
   8.628156       8.660585       8.693049       8.725519       8.757970
   8.790387       8.822764       8.855102       8.887390       8.919613
   8.951782       8.983929      1.6075116E-02  4.8231687E-02  8.0423258E-02
  0.1127023      0.1450891      0.1775567      0.2100914      0.2426924
  0.2753479      0.3080350      0.3407131      0.3733364      0.4058819
  0.4383501      0.4707500      0.5030981      0.5355510      0.5682628
  0.6012480      0.6345130      0.6680605      0.7018941      0.7360257
  0.7704708      0.8052388      0.8403382      0.8757718      0.9115435
  0.9476586      0.9841177       1.020925       1.058081       1.095586
   1.133437       1.171628       1.210158       1.249030       1.288243
   1.327801       1.367703       1.407949       1.448544       1.489497
   1.530817       1.572508       1.614576       1.657024       1.699854
   1.743071       1.786684       1.830698       1.875136       1.920077
   1.965600       2.011670       2.058211       2.105197       2.152627
   2.200504       2.248832       2.297615       2.346857       2.396562
   2.446736       2.497384       2.548508       2.600113       2.652203
   2.704787       2.757864       2.811441       2.865524       2.920117
   2.975222       3.030846       3.086996       3.143674       3.200884
   3.258634       3.316928       3.375772       3.435170       3.495126

biaowai

例如，是否可以将data数据写为points U P Rxx ...等文件，然后通过给internalField指定某种边界条件，把数据映射到OpenFOAM internalField上？

biaowai

各位老师好，请教下将dat数据转OpenFOAM场文件的方法。
我从NASA Turbulence Resource网站上下载了周期山LES时均流场的.dat文件，包含坐标，时均速度、压力、雷诺应力场，现在想将该数据用OpenFOAM对应算例的场文件表示，该如何实现呢？

biaowai

@Imech 按理说大攻角钝体绕流非定常应该能快速猝发的

biaowai

算的什么算例呢，检查检查网格、数值格式、时间步，cfl数都合理不

biaowai

@Imech 官方不是有SAIDDES SSTIDDES设置教程吗

biaowai

@Imech 印象这个参数是对网格尺寸进行缩放的

biaowai

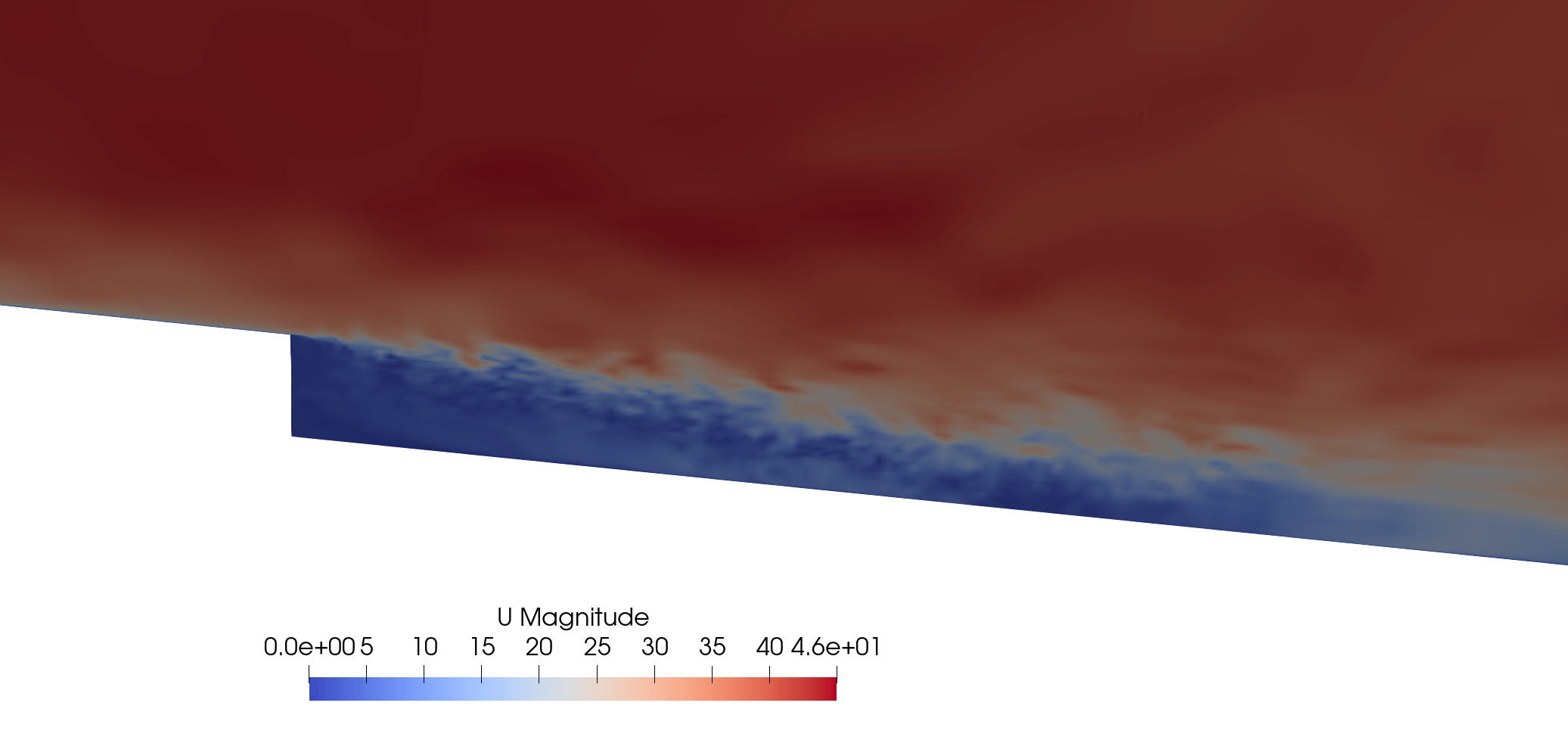

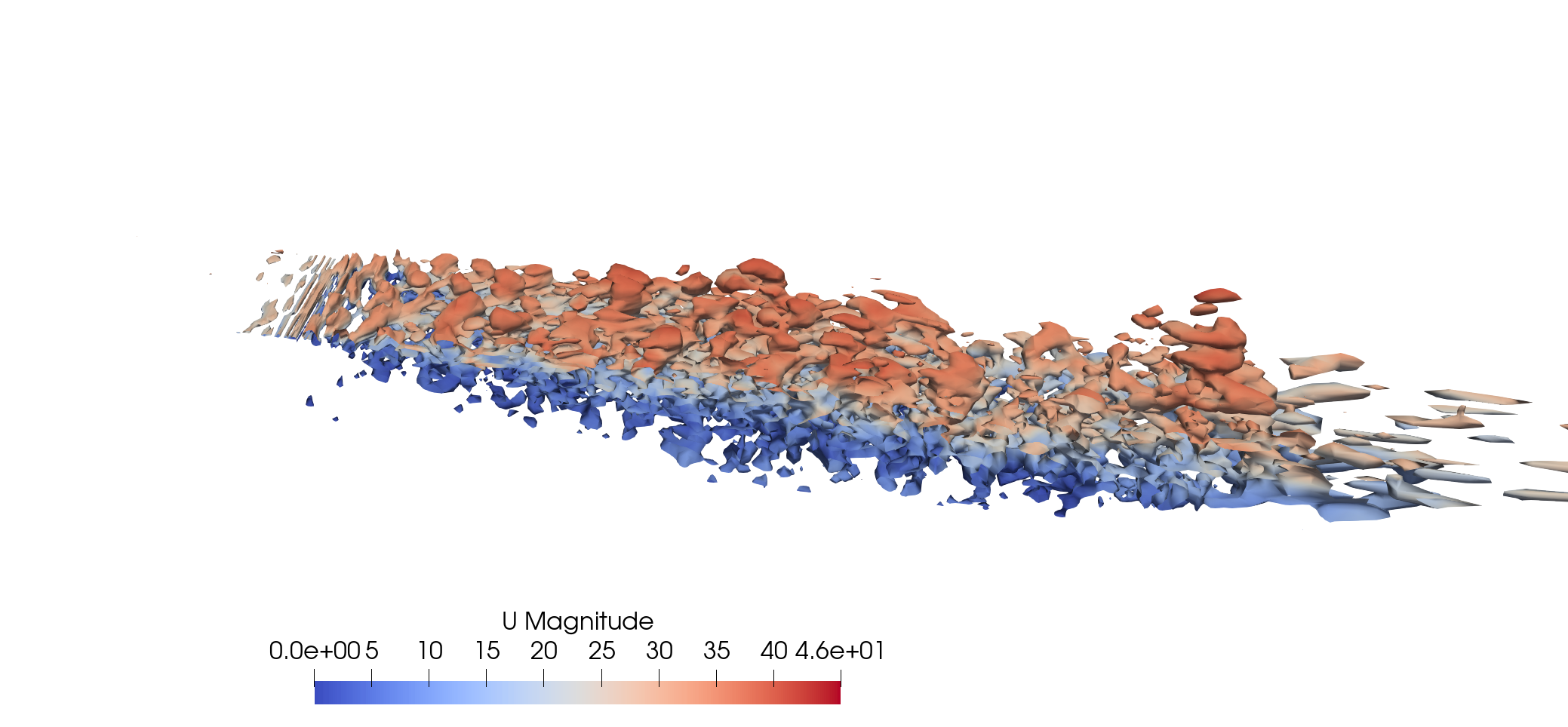

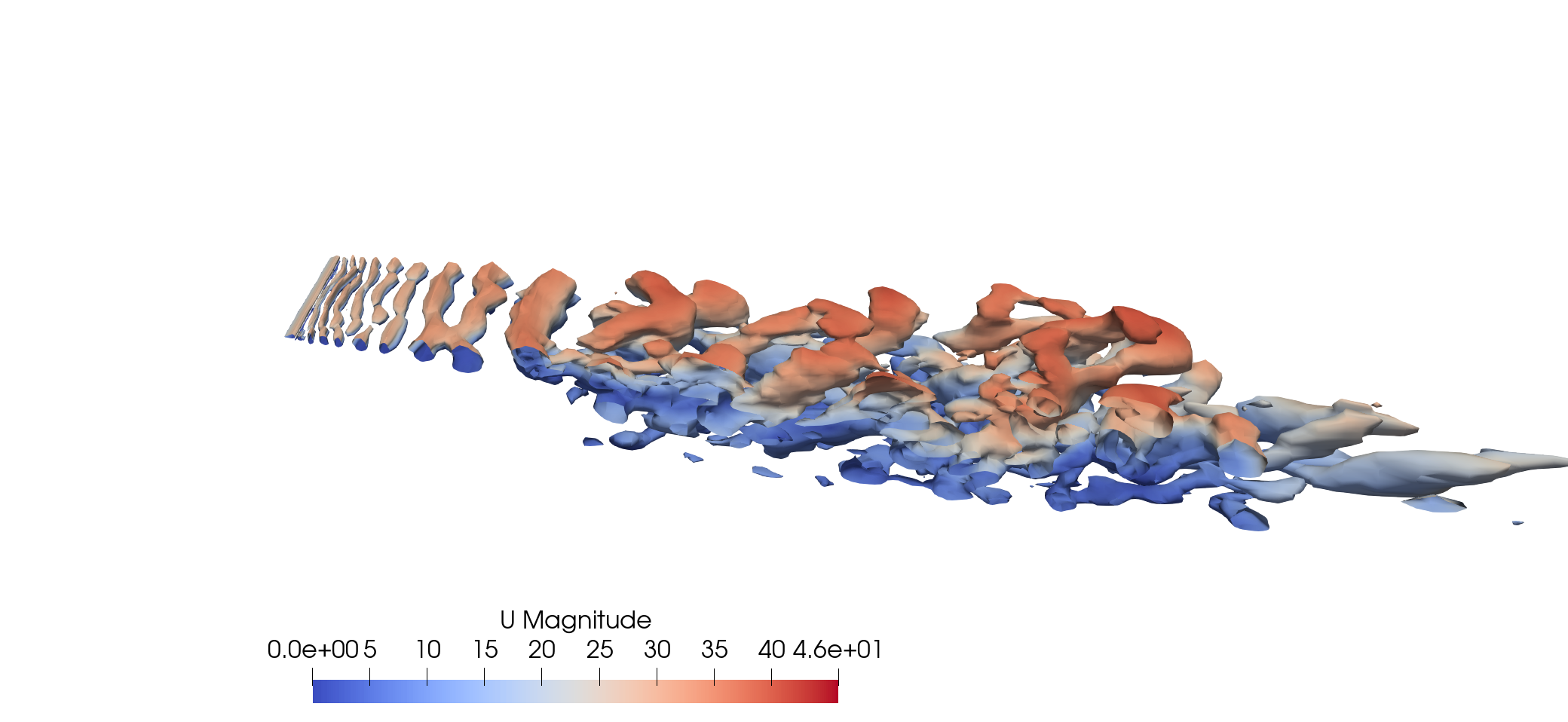

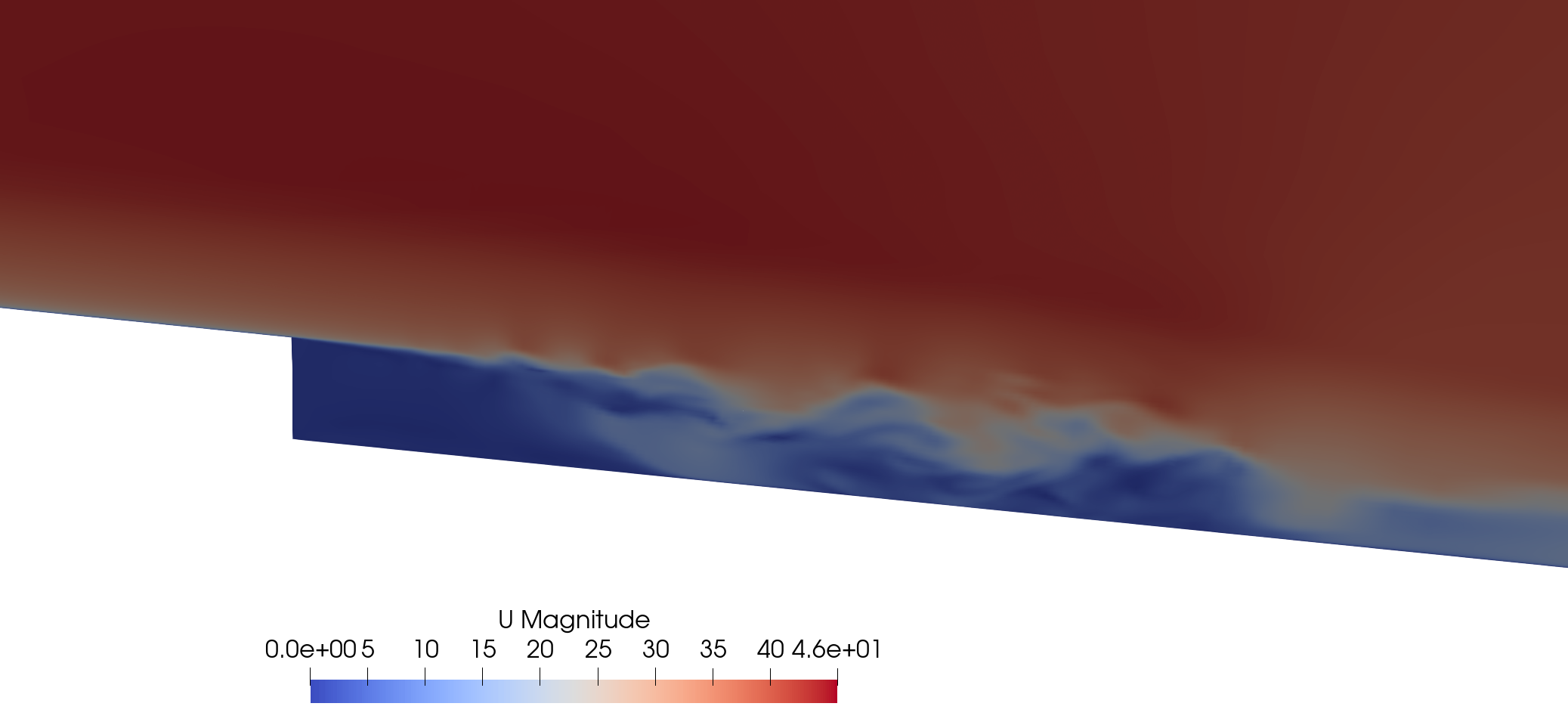

@李东岳老师可以看看DES瞬时湍流粘性和LES 亚格子粘性分布，或者试试DDES、IDDES啥的，时均解都会有区别
就算都是算LES，Smagorinsky、WALE、Sigma、k、Deardorff等等不同亚格子模型算的亚格子粘性不同，时均结果也有区别的
但这些差异应该会随网格加密减小

biaowai

@李东岳但是LES是用Smagorinsky提供亚格子粘性，调控动量方程，DES是控制湍流模型耗散，控制湍流粘性，每一时刻LES和DES提供的湍流粘性不同，瞬时和时均结果都会有些区别，应该是正常的吧。
而且台阶上游的边界层速度型，LES和DES算的也会有区别，网格很粗糙的话，LES刻画的边界层也不准，都会影响台阶下游回流区统计结果

biaowai

另外，李老师算的DES和LES有差距也很正常吧，DES有RANS区

biaowai

LES看着不对啊，回流区应该没这么长吧

biaowai

印象可以修改差值方式或者用mapFieldsPar试试

biaowai

@尚善若水在 OF可压流求解器中说：

NEXTFoam

看起来很新啊，上月分布的

biaowai

@biaowai 补充下，在Fluent理论和用户手册中搜索下，确实没有提到Picard，但出现了很多关于Newton-iteration的介绍，可能是Fluent更快收敛的一个原因

biaowai

@程迪读了大佬的解释，不免好奇，Fluent收敛速度比OF快会是因为非线性项处理方式引起的吗？比如Fluent可能用的是Newton迭代？OF为什么不用Newdon迭代呢，只是因为Picard迭代简单，不用求导？

biaowai

尽管不是开发CFD求解器的，但用过LU-SGS求解器算高亚音叶栅，还是比较成功的
参考的是这位篇文献：
Development of a coupled matrix-free LU-SGS solver for turbulent compressible flows
论文网址：
https://www.sciencedirect.com/science/article/abs/pii/S0045793018302160
github网址：
https://github.com/furstj/myFoam
这个求解器没有低速预处理，算低速流的话，还是建议用simpleFoam，
看楼上大佬们讨论，似乎foam-extend版本已经有许多成熟的LUSGS求解器
