这种是六面体的非结构网格吗？这个喷嘴和筒体上半部像是两个body，筒体上半部和下半部节点合并的又这么好，请教下各位大佬这两个图的上半部分是不是非结构化网格？

@zhijie 谢谢您的建议，600步之前是稳态计算，600步之后是瞬态计算，边界条件我一直在做修改尝试，目前还没解决，谢谢您

如题，是关于气固固三相流的一个案例，之前的反应器是圆柱形直管，没问题；之后在侧面开口干路通气体及固体A旁路通气体及固体B，出现速度残差下溢问题，问题就出在旁路这个小管子上，修改网格修改边界条件都没有效果，各位大神有没有也遇到过这样的情况？
附几何模型

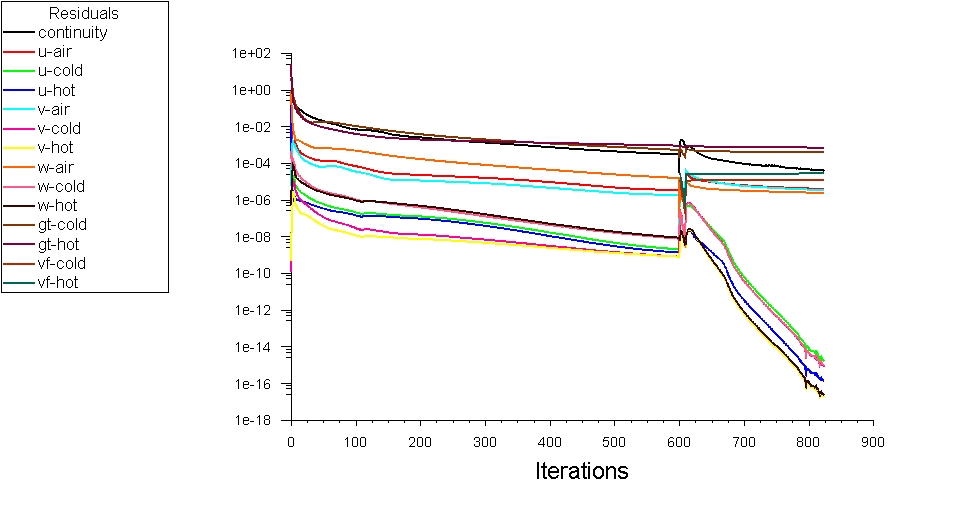

附残差图
及附错误代码

error:floating point exception

Flow time = 0.00217s, time step = 217
999783 more time steps

Updating solution at time level N... done.

  iter  continuity       u-air      u-cold       u-hot       v-air      v-cold       v-hot       w-air      w-cold       w-hot     gt-cold      gt-hot     vf-cold      vf-hot     time/iter
!  824 solution is converged
   824  4.4734e-05  4.3028e-06  1.6160e-15  1.5532e-16  3.7044e-06  8.4128e-16  1.8434e-17  2.6324e-06  9.2002e-16  2.2426e-17  4.2387e-04  7.7097e-04  1.3462e-05  3.1041e-05  0:06:39  200
        Stabilizing mp-x-momentum to enhance linear solver robustness.
        Stabilizing mp-y-momentum to enhance linear solver robustness.
        Stabilizing mp-z-momentum to enhance linear solver robustness.
        Stabilizing pressure correction to enhance linear solver robustness.

Divergence detected in AMG solver: pressure correction        Stabilizing granular-temperature to enhance linear solver robustness.

Divergence detected in AMG solver: granular-temperature        Stabilizing granular-temperature to enhance linear solver robustness.

Divergence detected in AMG solver: granular-temperature        Stabilizing vof-1 to enhance linear solver robustness.

Divergence detected in AMG solver: vof-1        Stabilizing vof-2 to enhance linear solver robustness.

Divergence detected in AMG solver: vof-2
Divergence detected in AMG solver: pressure correction
Divergence detected in AMG solver: granular-temperature
Divergence detected in AMG solver: granular-temperature
Divergence detected in AMG solver: vof-1
Divergence detected in AMG solver: vof-2
Divergence detected in AMG solver: pressure correction
Divergence detected in AMG solver: granular-temperature
Divergence detected in AMG solver: granular-temperature
Divergence detected in AMG solver: vof-1
Divergence detected in AMG solver: vof-2
Divergence detected in AMG solver: pressure correction
Divergence detected in AMG solver: granular-temperature
Divergence detected in AMG solver: granular-temperature
Divergence detected in AMG solver: vof-1
Divergence detected in AMG solver: vof-2
Error at host: floating point exception

Error at Node 1: floating point exception

Error at Node 0: floating point exception

Error at Node 2: floating point exception

Error at Node 3: floating point exception

Error: floating point exception
Error Object: #f
