这是编译截图

dell@dell-optiplex-7070:~/OpenFOAM/dell-v2012/run/myinterIsoFoam/myoverInterDyMFoam/myoverInterIsoDyMFoam1$
wmake | tee log.wmake2

Making dependency list for source file myoverInterIsoDyMFoam1.C

g++ -std=c++11 -m64 -pthread -DOPENFOAM=2012 -DWM_DP
-DWM_LABEL_SIZE=32 -Wall -Wextra -Wold-style-cast -Wnon-virtual-dtor -Wno-unused-parameter -Wno-invalid-offsetof -Wno-attributes -Wno-unknown-pragmas -O3 -DNoRepository -ftemplate-depth-100 -I../myoverVoF -I../myoverinterFoam -I../myoverInterIsoFoam -I
省略
-lm -o /home/dell/OpenFOAM/dell-v2012/platforms/linux64GccDPInt32Opt/bin/myoverInterIsoDyMFoam1

--------------------------------------------------problrm---------------------------------------------这是具体的报错信息

/usr/bin/ld: Make/linux64GccDPInt32Opt/myoverInterIsoDyMFoam1.o: in
function Foam::isoAdvection::type() const': myoverInterIsoDyMFoam1.C:(.text._ZNK4Foam12isoAdvection4typeEv[_ZNK4Foam12isoAdvection4typeEv]+0x7): undefined reference to Foam::isoAdvection::typeName' /usr/bin/ld:
Make/linux64GccDPInt32Opt/myoverInterIsoDyMFoam1.o: in function
main': myoverInterIsoDyMFoam1.C:(.text.startup+0x238d): undefined reference to Foam::isoAdvection::isoAdvection(Foam::GeometricField<double,
Foam::fvPatchField, Foam::volMesh>&, Foam::GeometricField<double,
Foam::fvsPatchField, Foam::surfaceMesh> const&,
Foam::GeometricField<Foam::Vector<double>, Foam::fvPatchField,
Foam::volMesh> const&)'
---------------------------------------------omitted--------------------
/usr/bin/ld: myoverInterIsoDyMFoam1.C:(.text.ZN4Foam12isoAdvection6advectINS_9zeroFieldES2_EEvRKT_RKT0[ZN4Foam12isoAdvection6advectINS_9zeroFieldES2_EEvRKT_RKT0]+0x671): undefined reference to `Foam::isoAdvection::debug'
collect2: error: ld returned 1 exit status
make: *** [/home/dell/OpenFOAM/OpenFOAM-v2012/wmake/makefiles/general:150：/home/dell/OpenFOAM/dell-v2012/platforms/linux64GccDPInt32Opt/bin/myoverInterIsoDyMFoam1] 错误 1

---

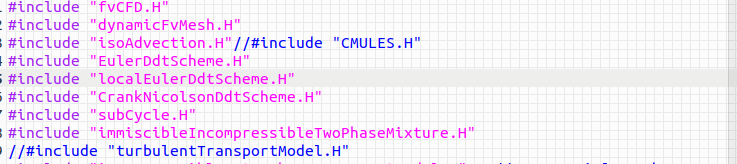

想利用头文件#include “isoAdvection.H”替换MULES，并耦合到重叠网格中间区，扩展openfoam的求解器
isoAdvection的实现文件和MULES位置类似，源代码位于~/src/transportModels/geometricVoF/

请问这个报错可能是那个方向的问题?感谢！
